Foundries rely heavily on shot blasting machines to remove sand, scale, and oxidation from castings, ensuring a smooth and defect-free surface. However, improper parameter settings can lead to inefficient cleaning, excessive wear, or even damage to the cast parts.
Optimizing shot blasting parameters is essential for achieving consistent cleaning results, extending machine life, and minimizing operational costs. This guide outlines the key settings that every foundry must fine-tune to enhance performance.
By understanding these settings, foundries can reduce defects, improve productivity, and achieve better surface finishes.
Why Proper Shot Blasting Settings Matter?
Inconsistent parameter settings can cause excessive abrasive consumption, inadequate cleaning, or even surface defects on castings. The key to achieving optimal results lies in fine-tuning the following:
- Abrasive Type & Size
- Blasting Wheel Speed
- Abrasive Flow Rate
- Blasting Time
- Workpiece Rotation & Positioning
By controlling these variables, foundries can improve efficiency, reduce costs, and ensure consistent casting quality.
1. Abrasive Type & Size: Choosing the Right Media
Abrasive selection directly impacts cleaning efficiency and surface roughness. The choice depends on the type of casting material, contamination level, and final finish requirements.
| Abrasive Type | Properties | Best for |
|---|---|---|
| Steel Shot | Spherical, durable, uniform impact | General-purpose cleaning, steel & iron castings |
| Steel Grit | Angular, aggressive cutting | Heavy-duty cleaning, removing tough scale |
| Stainless Steel Shot | Corrosion-resistant, non-rusting | Non-ferrous castings (aluminum, brass) |
| Aluminum Oxide | Hard, sharp edges | Precision cleaning, delicate surfaces |
Key Tip: Finer abrasives (small size) provide smoother finishes, while coarser abrasives clean more aggressively but may leave rougher textures.
2. Blasting Wheel Speed: Adjusting for Efficiency
The speed of the blasting wheel (measured in RPM) determines the kinetic energy of the abrasive particles.
| Wheel Speed (RPM) | Effect | Application |
|---|---|---|
| Low (1000-1500 RPM) | Gentle impact, less aggressive | Thin-walled castings, precision parts |
| Medium (1500-2000 RPM) | Balanced cleaning & efficiency | General-purpose foundry applications |
| High (2000-3000 RPM) | High-impact cleaning, faster scale removal | Heavy-duty cleaning, large iron/steel castings |
A higher wheel speed increases cleaning intensity but also accelerates wear on machine components.
3. Abrasive Flow Rate: Controlling Material Usage
The abrasive flow rate (kg/min) affects the density of abrasive particles hitting the casting surface.
| Flow Rate (kg/min) | Effect |
|---|---|
| Low (50-100 kg/min) | Incomplete cleaning, insufficient impact |
| Medium (100-200 kg/min) | Balanced cleaning, optimal efficiency |
| High (200+ kg/min) | Excessive wear, risk of surface damage |
Key Tip: Optimizing the flow rate reduces abrasive waste while ensuring complete scale and sand removal.

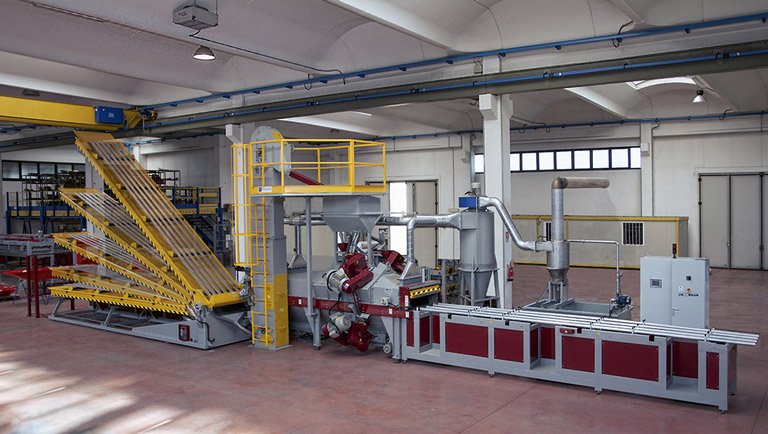

4. Blasting Time: Ensuring Optimal Exposure
The blasting time must be carefully controlled to avoid over-processing or under-cleaning.
| Casting Type | Recommended Blasting Time (Seconds) |
|---|---|
| Light Aluminum Castings | 20-30 |
| Medium Iron Castings | 40-60 |
| Heavy Steel Castings | 60-90 |
Shorter blasting times may leave residual contaminants, while excessive exposure can wear down the casting’s surface.
5. Workpiece Rotation & Positioning: Ensuring Even Cleaning
Proper positioning and rotation inside the shot blasting machine ensure uniform coverage.
Best Practices:
- For drum-type machines: Small castings should be rotated to expose all surfaces.
- For hanger-type machines: Large castings should be hung securely to prevent movement.
- For table-type machines: Ensure even spacing between castings to avoid shadowing effects.
Preventive Maintenance Tips
Maintaining shot blasting machines is crucial for consistent performance.
| Maintenance Task | Recommended Frequency |
|---|---|
| Inspect and replace worn-out blades | Weekly |
| Check and adjust abrasive flow rate | Monthly |
| Clean dust collectors and separators | Monthly |
| Lubricate machine bearings | Quarterly |
Proactive maintenance minimizes downtime and prolongs equipment lifespan.
Conclusion
Optimizing key shot blasting parameters—such as abrasive type, wheel speed, flow rate, blasting time, and workpiece positioning—ensures efficient and high-quality casting cleaning.
Foundries that fine-tune these settings will benefit from reduced abrasive consumption, longer machine life, and consistently clean castings. Consult with experts to determine the best configuration for your specific needs.
