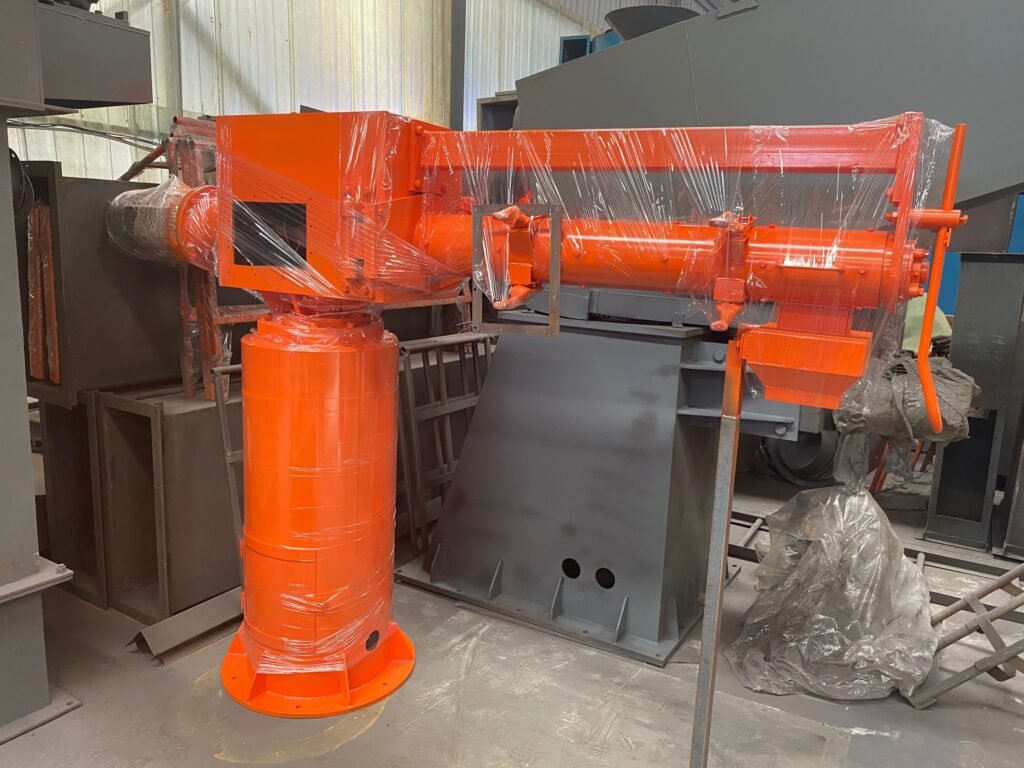

Single Arm Resin Sand Mixer — Efficient Mixing from the Source
Engineered and built by our factory to deliver stable, uniform resin sand mixing — supporting smoother casting and fewer defects.
Compact, consistent, and easy to operate — our Single Arm Resin Sand Mixer is built in-house to deliver reliable mixing for core shops and foundries, with full factory support for smooth integration and stable output.
About Single Arm Resin Sand Mixer Overview
Inconsistent sand mixing leads to casting defects, material waste, and frequent rework — especially in core making and small-batch molding. The Single Arm Resin Sand Mixer is purpose-built to solve these challenges.
Manufactured by our own factory team, this compact and efficient mixer ensures uniform blending of resin, sand, and hardener in real time. It’s designed to stabilize mold quality, reduce downtime, and help your team focus on output, not troubleshooting.
Whether you’re running a core shop or integrating a no-bake process into your foundry, this machine delivers reliable performance, long service life, and full technical support from installation to daily operation — all from a factory that understands your production floor.
We offer a range of significant benefits:
Controlled dosing and mixing support resin-sand preparation; mixture quality is assessed for the actual recipe and calibrated operating range.
Select the working radius and allow space for feeding, chemical systems and service access. Final footprint and clearances follow the project layout.
Frequent maintenance disrupts production. With wear-resistant components and streamlined access, our mixer runs longer with less intervention.
Furan and phenolic no-bake systems can be supported with the appropriate configuration. Other binders require pump, seal, viscosity and chemical-compatibility review.
When issues arise, you need answers fast. As a direct manufacturer, we offer installation guidance, operator training, and ongoing tech support — no middlemen, no delays.
Get a Quote
Comprehensive Support and ServicesAlways Providing the Help You Need
A reliable support system means more than service — it means uninterrupted production, fewer mistakes, and faster return on investment. With stable technical backup, your team gains the confidence to operate efficiently, even under pressure.
From the moment your Single Arm Resin Sand Mixer enters your workshop, you gain more than just equipment. You gain smoother integration, reduced learning time for operators, and fewer breakdowns disrupting your casting schedule.
When challenges occur, timely support ensures you don’t lose valuable hours diagnosing problems. You stay focused on delivering castings — not chasing after help.
With consistent guidance and accessible resources, you build a more resilient, efficient, and cost-effective production system — one where problems are short-lived and performance is long-term.
Technical Specification ofSingle Arm Resin Sand Mixer Machine - Technical Specifications
Single-Arm Continuous Resin Sand Mixing
S242, S243, S245 and S248 are single-arm continuous mixers for resin-sand preparation. Mixing results depend on sand condition, binder chemistry, dosing setup and the selected operating configuration.
Technical Parameters
| Model | Nominal capacity (t/h) | Working radius (mm) |
|---|---|---|
| S242 | 2 | 850 |
| S243 | 3 | 1500 |
| S245 | 5 | 2000 |
| S248 | 8 | 2000 |
| Model | Main motor (kW) | Hardener pump maximum flow (L/h) |
|---|---|---|
| S242 | 2.2 | 49 |
| S243 | 3 | 49 |
| S245 | 4 | 49 |
| S248 | 5.5 | 75 |
Selection conditions: Capacity is model-specific nominal throughput. Actual feed rate, binder delivery and usable operating range depend on recipe, viscosity and the selected metering equipment. Main motor power is not total installed power; resin/hardener pumps, controls and other auxiliaries must be included in the approved electrical load list. Trough dimensions, rotation speed and installation clearances require the selected-model documentation.
Control and Metering Options
BASIC: Manual pump adjustment without PLC. PLUS: PLC and automatic mode / recipe control where selected. These are configuration options for the same mechanical models, not separate machine models.
Binder dosing: Metering performance is established over the calibrated operating range using pump-flow calibration and recipe test records. Confirm the actual calibrated range and acceptance criteria for the selected equipment; no universal numerical dosing-accuracy guarantee is stated.
Layout and maintenance: Allow for the stated working radius, sand feed, separate chemical storage and metering routes, maintenance access and project anchoring/platform requirements. Final layout and service provisions follow the selected GA and equipment configuration.
Inspection and acceptance: Required functional, load and dosing tests are defined in the agreed inspection plan. Test completion or certified performance is supported by the actual equipment records, not assumed for all models.
Process and Safety Conditions
- Recommended process environment: 20–30°C and 40–60% relative humidity are process recommendations, not absolute machine operating limits. Sand temperature and binder reaction requirements must be reviewed for the actual recipe.
- Resin compatibility: Furan and phenolic no-bake systems can be supported with the appropriate configuration. Other binder systems require checks of pumps, seals, viscosity, corrosion resistance and hardener compatibility.
- Chemical separation: Separate storage, pumps and metering lines, together with the specified injection arrangement, are defined and verified for the selected system. Do not directly mix resin and hardener outside the approved process.
- Sand thermal conditioning: Heating or cooling is an optional / project-engineered system, not a standard feature of every S24 mixer. The required arrangement follows sand temperature and binder-process requirements.
- On-site integration: Layout, utilities, operating safeguards and startup configuration are confirmed for the actual foundry installation.
Why Choose Us
Unmatched Quality and Innovation
Description: "Tailored solutions designed to meet specific industrial needs
Durable machines built to last, even in the toughest environments
Reduce operating costs with energy-efficient designs
Benefit from our expert support team available around the clock
Trust in our global expertise and extensive installation base
Dust-control arrangements and environmental acceptance requirements depend on the selected configuration and project location.
Enjoy low maintenance costs due to high-quality components
Safety functions and operating requirements are defined for the selected equipment configuration; confirm them in the approved documentation.
