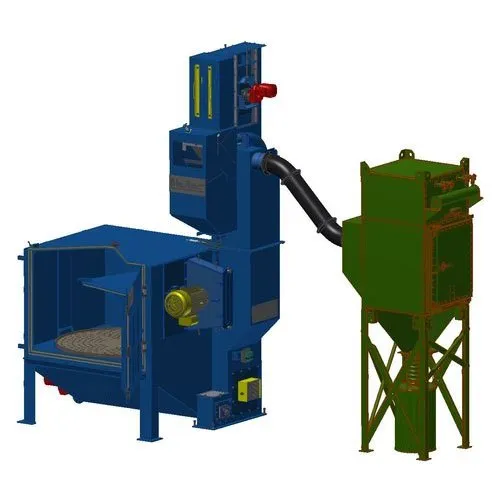

Large or irregular parts can challenge a rotary table shot blasting arrangement through limited clearance, uneven loading, shadowed surfaces and difficult abrasive removal. Evaluate the actual part and fixture against the machine's documented limits before loading it or proposing a modification.
Check Fit Throughout the Operating Motion
Provide a dimensioned part drawing, mass, center of gravity and the proposed support points. Include the fixture and any protruding features when checking the door opening, chamber envelope and rotation path.
A part that fits on the stationary table may still interfere during rotation or loading. Check the complete movement and lifting route. Do not treat table diameter alone as the permitted part envelope.
Review Load and Support Conditions
| Requirement | Engineering check |
|---|---|
| Total load | Part and fixture mass within the approved rating |
| Load distribution | Support positions, eccentricity and local loading limits |
| Restraint | Prevention of unacceptable movement during treatment |
| Lifting | Approved lifting points, rigging and access |
| Table and drive | Suitability for the intended motion and duty |
Seek a manufacturer or responsible engineer review when loading differs from the documented conditions. Reinforcement or a larger table can affect bearings, drive, structure, chamber and safeguards; it is not a simple capacity-label change.
Identify Shadowed and Sensitive Surfaces
Map the surfaces requiring treatment and those that must be protected. Recesses, ribs and contact points can obstruct abrasive exposure. A rotating table changes orientation but does not guarantee access to every internal feature.
Plan how residual abrasive will be removed and inspected after treatment. Cavities and upward-facing pockets can retain media even when the visible exterior appears clean. Include handling and cleanup in the process trial.
Distinguish Wheel and Nozzle Arrangements
Wheel blasting and compressed-air nozzle blasting use different mechanisms to accelerate abrasive. A wheel should not be described as having an adjustable nozzle simply because its blast pattern can be set through its designed components.
Evaluate any change to blast direction, wheel position or operating parameters through the approved engineering procedure. Unreviewed changes can affect containment, wear, exposure and safety. More power does not automatically correct a shadowed surface.
Consider the Available Process Options
Possible options include a different fixture, approved reorientation, another rotary table configuration or a different handling method. A separate operation may be required for surfaces the main process cannot reach.
Compare alternatives using the actual part specification and required production route. Customization is justified when it addresses a defined limitation; it is not a guarantee of complete coverage or lower maintenance.
Validate on Representative Parts
Agree on cleanliness, profile, dimensional and damage criteria before testing. Record the fixture, media, settings, loading and orientation sequence. Inspect all required surfaces, including difficult recesses and protected features.
Document any area requiring additional treatment and the method used to confirm acceptance. Avoid presenting a full-coverage percentage without a defined inspection basis. Check residual abrasive and handling damage before releasing the part.
Include Installation and Maintenance Constraints
Review foundations, lifting equipment, chamber access and wear-part replacement space. Confirm utilities, extraction and safe isolation for the proposed configuration. Larger equipment may require changes beyond the blast machine itself.
The final proposal should show part compatibility, approved loading, treatment sequence and acceptance evidence. Do not infer suitability from an unverified oversized mining-component case or publish unsupported improvements in cleaning time, coverage or maintenance cost.
