Hanger shot blasting machines play a crucial role in surface treatment, helping industries improve the durability and quality of metal components. However, many companies struggle to find the right machine that meets their efficiency, automation, and maintenance needs.
Hanger shot blasting machines offer powerful cleaning, strengthening, and finishing solutions for a variety of metal components. They feature advanced abrasive circulation, intelligent controls, and flexible configurations to enhance operational efficiency and ensure long-term reliability.
While these machines offer great benefits, choosing the right one requires understanding their working principles, technical features, and customization options. Let's explore these aspects in detail.

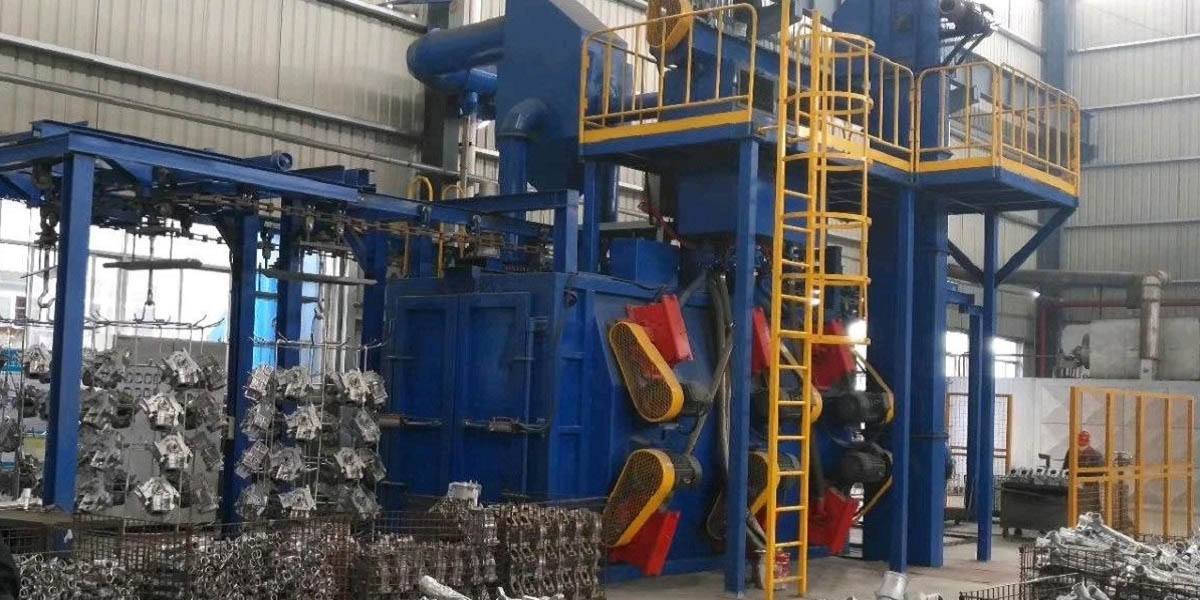

Introduction to Hanger Shot Blasting Machines
Hanger shot blasting machines are widely used for surface cleaning, finishing, and strengthening of metal components. They provide efficient treatment for materials such as:
- Aluminum alloy die castings
- Zinc alloy die castings
- Copper castings
- Stainless steel precision castings
- Iron castings
- Motorcycle frames and steel products
These machines improve surface quality by removing rust, oxide scale, oil stains, and other contaminants while enhancing material durability.
How Do Hanger Shot Blasting Machines Enhance Surface Treatment?
Hanger shot blasting machines effectively clean and strengthen workpieces by removing surface impurities and increasing wear resistance. The shot blasting process improves adhesion for coatings, making it essential in industries like automotive, aerospace, and metalworking.
By ensuring thorough and uniform cleaning, these machines help industries achieve higher-quality finishing standards with minimal manual intervention.
Working Principle of Hanger Shot Blasting Machines
Hanger shot blasting machines operate through a structured process:
- Parts Hanging: Workpieces are hung on a hook and transported into the blasting chamber.
- Shot Blasting Process:
- Shot blasters target the parts at multiple angles.
- The hook moves back and forth while rotating, ensuring uniform blasting coverage.
- Abrasive Recycling: Used abrasive is collected and reprocessed for reuse.
- Cycle Completion: Once finished, the hook exits, and the next batch enters for treatment.
This system ensures thorough cleaning, minimal dead zones, and optimal strengthening of workpieces.
Why Is This Process So Effective?
The continuous movement of the hook eliminates blind spots, ensuring every surface is evenly treated. The abrasive recycling mechanism reduces waste, making the system more cost-effective and environmentally friendly.
Technical Features and Innovations
3.1 Machine Structure & Materials
| Feature | Benefit |
|---|---|
| Wear-resistant manganese steel shell | Protects exposed areas from excessive wear |
| Compact, pit-free design | Simplifies installation and maintenance |
The use of high-strength manganese steel ensures durability, while the pit-free design makes installation and operation more straightforward.
3.2 Advanced Abrasive Circulation System
A well-designed abrasive circulation system enhances performance. It includes:
- Transverse & longitudinal screw conveyors – Efficiently transport abrasive material.
- Bucket elevator – Moves abrasives to the separator.
- Abrasive separator – Filters dust and unwanted particles, ensuring clean abrasives for reuse.
This system minimizes material waste and maintains high blasting efficiency.
3.3 High-Performance Shot Blasting System
The core of any hanger shot blasting machine is its shot blaster unit, which determines cleaning speed and effectiveness.
| Feature | Benefit |
|---|---|
| Cantilever centrifugal shot blaster | Provides powerful abrasive flow and faster cleaning speeds |
| Bi-directional operation | Runs both clockwise and counterclockwise for optimal blasting efficiency |
This high-speed shot blasting system significantly reduces processing time while ensuring uniform coverage.
3.4 Intelligent Control System
Automation improves efficiency, and modern hanger shot blasting machines are equipped with:
- PLC control system – Ensures automated precision.
- Automated/manual operation modes – Provides flexibility.
- Digital display with timer & working hours counter – Allows accurate monitoring.
- Automatic turbine start and controlled rotating hooks – Enhances safety and operational convenience.
These intelligent features allow operators to set precise parameters, minimizing errors and maximizing productivity.
Key Features & Benefits
 | Feature | Benefit |
|---|---|---|
| Efficient Cleaning | Removes rust, scale, and oil, improving surface roughness and adhesion for coatings. | |
| Surface Strengthening | Increases hardness and wear resistance, extending workpiece lifespan. | |
| High Flexibility | Accommodates different shapes and sizes of parts, making it versatile for various industries. | |
| Automated Operation | Reduces manual labor, improves production efficiency, and ensures consistency. | |
| Environmental Protection | Well-sealed structure prevents shot leakage, ensuring worker safety and compliance. |
These benefits make hanger shot blasting machines an essential investment for manufacturers focused on quality, efficiency, and environmental responsibility.
Customization and Configurations
Hanger shot blasting machines can be tailored to meet specific operational needs through:
| Customization Option | Details |
|---|---|
| Size Adjustments | Machines can be scaled to handle larger or smaller workpieces. |
| Number of Shot Blasters | Additional blasters can increase processing speed. |
| Power Variations | Motor capacity can be adjusted to optimize efficiency. |
| Structural Types | Options include I-type or Y-type configurations. |
This customization ensures that industries can optimize their shot blasting processes for maximum performance.
Advantages of Hanger Shot Blasting Machines
✅ Compact, space-saving design – No pit required, easy installation.
✅ Large blasting volume & high-speed processing – Boosts productivity.
✅ Strong sealing system – Prevents shot leakage, ensuring a safe workspace.
✅ Reliable performance & long lifespan – Built with high-quality materials.
By choosing the right hanger shot blasting machine, industries can achieve cleaner surfaces, longer-lasting components, and enhanced efficiency.
Conclusion
Hanger shot blasting machines are essential for industries that require precise, high-quality surface treatment. Their advanced technical features, intelligent controls, and customizable configurations ensure optimal performance while reducing operational costs. Investing in these machines leads to better product quality, improved production efficiency, and long-term reliability.
