Steel pipe shot blasting is a surface-preparation process for removing rust, mill scale and suitable coating residues. Machine selection starts with the pipe dimensions, incoming surface condition and coating specification. Cleaning cannot restore metal already lost to corrosion or guarantee the service life of a pipe.

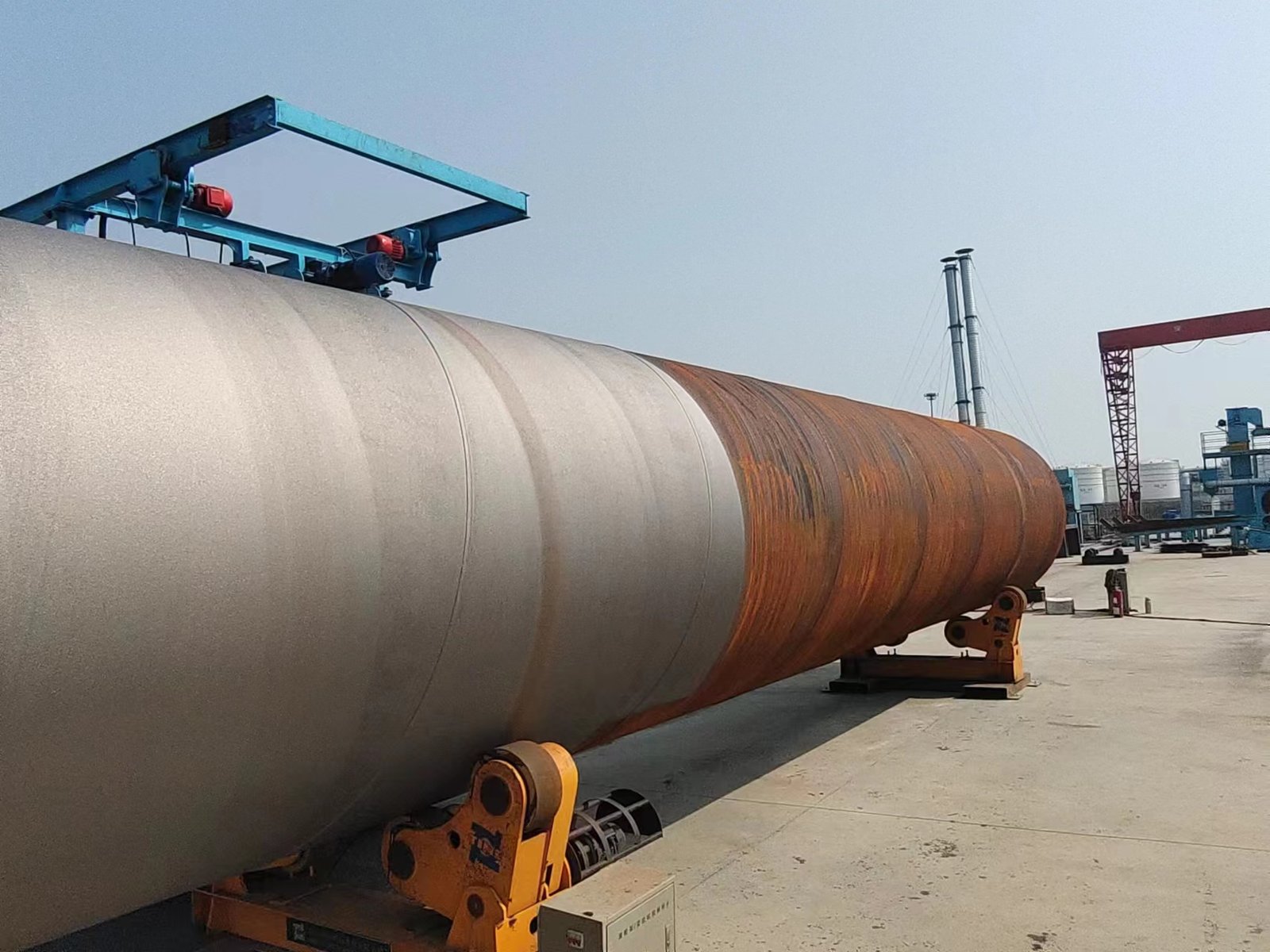

Why Proper Surface Cleaning Matters for Steel Pipes
Moisture, storage conditions and handling can affect the surface presented to a coating line. Remaining scale, dust or contamination can interfere with coating application. Assess the condition before choosing a cleaning method, and separate surface preparation from inspection of wall thickness or structural integrity.
A steel pipe shot blasting cleaning machine should be evaluated against an agreed preparation specification. Acceptance needs to cover the areas that are difficult to reach as well as the readily visible outside surface.
What Is a Steel Pipe Shot Blasting Machine?
The process directs abrasive at the pipe surface using blast wheels or an appropriate air-blast arrangement. Pipe movement and blast coverage must work together to expose the required surface. The proposal should state whether it treats the outside, inside or both.
Remove oil and grease with a suitable preliminary cleaning process. Do not assume that abrasive blasting alone will resolve every form of contamination. Check the requirements for dust, salts and remaining coating residues before painting.
ISO 8501-1 addresses visual surface cleanliness. The specified preparation grade and the required surface profile are separate acceptance requirements; neither follows automatically from buying a particular machine.
Types of Steel Pipe Shot Blasting Machines
Outer Surface Systems
External cleaning systems combine pipe support and movement with a suitable blast pattern. Check coverage around the circumference, at pipe ends and near support contact areas. Pipe straightness, wall thickness and weight affect handling design.
Internal Cleaning and Combined Lines
Internal cleaning requires access to the bore, suitable tooling and a method for removing spent abrasive. A combined line must explain how internal and external operations are sequenced. Do not assume both occur simultaneously or that one arrangement fits every bore and pipe length.
Automated Lines
Loading, conveying, cleaning and unloading can be integrated with upstream and downstream equipment. Drying, preheating and coating are configuration choices that need their own process justification. The useful production rate depends on the complete line, including inspection and material handling.
How to Compare Blasting with Manual Preparation
Compare methods on representative pipes under the same acceptance criteria. Include loading, cleaning, inspection, rework and unloading in the timing. A short blast exposure time alone does not establish the output of the line.
Record the surface condition, abrasive, equipment settings and staffing assumptions. Assess access, noise, airborne exposure and manual handling for each method. Enclosures and extraction need proper design and verification; automation does not remove the need for a safety assessment.
How to Select the Right Pipe Shot Blasting Machine
| Selection input | What to define and verify |
|---|---|
| Pipe range | Minimum and maximum diameter, length, wall thickness, weight and straightness |
| Surface requirement | Incoming rust or scale, areas to treat, cleanliness, profile and coating requirements |
| Handling | Support arrangement, rotation, feed control, end treatment and changeover procedure |
| Abrasive | Compatibility with the workpiece and equipment, particle shape and size, recycling and contamination control |
| Production | Product mix, batch size, shift pattern and the bottleneck of the complete line |
| Site | Layout, foundations, utilities, extraction, maintenance access and safe loading routes |
Steel shot and angular grit produce different impact and profiling behaviour. The actual finish depends on the full process, so qualify the selected abrasive and settings with samples rather than choosing from a general media description alone.
Common Mistakes to Avoid
- Specifying a machine by pipe diameter while omitting length, weight or thin-wall limitations.
- Treating visual cleanliness as a measurement of surface roughness.
- Comparing cleaning time without accounting for changeovers, handling and inspection.
- Ignoring abrasive separation, dust extraction or access for maintenance.
- Assuming a clean surface proves that a corroded pipe is fit for service.
Frequently Asked Questions
What finish should be specified?
Use the coating and application requirements to set the target, then agree the inspection method and sampling locations before a trial. Record cleanliness and surface profile separately.
How much workshop space is needed?
Request a layout for the actual pipe range, including loading and unloading, extraction, maintenance clearances and material movement. A generic line length is insufficient for a site decision.
What maintenance should be planned?
Use the equipment-specific manual to plan inspection of wear parts, blast wheels or nozzles, conveying components, seals, abrasive recovery and filters. Safe access and isolation procedures belong in the maintenance plan.
How should investment be evaluated?
Build an estimate from the quoted equipment and installation cost, expected utilization, local operating costs and a documented baseline. Include abrasive, energy, wear parts, labor, extraction and planned downtime. Test sensitivity to product mix and demand. An estimate is a planning tool, not a promised payback period or a customer result.
Discussing a Pipe-Cleaning Requirement with Hitech
Provide pipe drawings, photographs of the incoming surface, coating requirements, target production and site constraints. Ask for the proposed configuration, trial arrangements, acceptance criteria and the scope of installation, training and spare-parts support in the quotation.
Contact Hitech-China to discuss these inputs and a configuration-specific proposal.
