An airless shot blasting machine uses a motor-driven blast wheel to accelerate abrasive toward a surface. In this context, “airless” describes abrasive propulsion. Auxiliary equipment, controls or cleaning functions may still need compressed air, so the complete utility requirement must be checked in the machine specification.
How the Wheel-Blasting Process Works

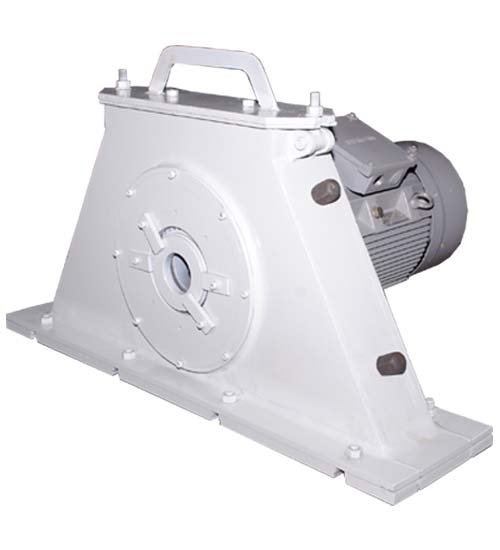

A controlled abrasive feed supplies a rotating blast wheel. The wheel directs the abrasive into the treatment area, where its impact removes suitable deposits or prepares the surface for a specified next operation.
The workpiece is supported and moved through the blast pattern using an arrangement suited to its geometry. Spent abrasive and removed material are collected. In a recycling system, separation removes unsuitable material before usable abrasive returns to the supply.
The finished surface still requires inspection. Abrasive recycling, enclosure and automatic movement do not independently prove cleanliness, coating suitability or full coverage.
The Main Equipment Functions
| Function | What to evaluate |
|---|---|
| Blast wheels and abrasive feed | Pattern, adjustment, permitted media and service access |
| Chamber and containment | Work envelope, liners, seals and abrasive escape points |
| Workpiece handling | Load limits, stable support and exposure of required surfaces |
| Recovery and separation | Abrasive carry-out, fines removal and working-mixture control |
| Dust collection | Suitability for the actual contaminants and installation |
| Controls and interfaces | Operating sequences, protective functions and upstream/downstream coordination |
A fault in one area can affect the others. For example, abrasive-flow variation or component wear can change treatment while the displayed cycle settings remain the same.
Wheel Blasting Compared with Air Blasting
Wheel blasting propels abrasive mechanically. Air blasting uses compressed air through a compatible nozzle system. The useful comparison is how each proposed arrangement treats the actual component, including access, handling, adjustment and inspection.
Wheel arrangements can be evaluated for repeatable part movement through a defined blast pattern. Air-blast arrangements may provide directed access to selected areas. Neither method automatically reaches every recess or produces a better finish on every material.
Compare energy use across the complete system: propulsion, handling, recovery, extraction and any auxiliary air demand. Motor power or the absence of an air-propelled blast stream alone is insufficient to establish operating savings.
Applications Depend on Configuration
Metal-cleaning applications can include compatible castings, forgings and fabricated steel requiring removal of rust or scale. Handling may use hangers, tumbling equipment, tables or conveyors, depending on part geometry and permissible contact.
Floor-preparation equipment is a distinct configuration for a different work environment. A machine suitable for structural steel must not be assumed suitable for concrete, wood or sensitive lightweight parts. Pipe interiors and shielded surfaces also require a separate access assessment.
Blasting does not restore metal lost to corrosion or replace required defect inspection. Thin sections and finished surfaces need checks for dimensional or surface effects during process qualification.
Specify a Representative Trial
Provide drawings, material, dimensions, weight, incoming condition and the required finished state. Include the expected production mix and the handling available at the site.
Agree which areas must be treated and how they will be inspected. Record abrasive condition, settings, loading, treatment, unloading and any manual touch-up. Evaluate the complete cycle and accepted output rather than relying on blast time alone.
Installation and Operating Review
Check floor space, access, foundations where applicable, electrical supply, extraction and waste handling. Use the equipment manual and site procedures to define guarding, safe isolation, training and maintenance responsibilities. Environmental or exposure compliance requires assessment of the actual installation.
Confirm commissioning assistance, documentation and spare-parts arrangements in the quotation. A configuration-specific proposal and trial provide a better basis for selection than a universal promise of lower cost or higher productivity.
Contact Hitech-China with the application details to discuss a suitable machine arrangement and evaluation scope.
