Maintenance of steel pipe blasting equipment should follow the actual machine manual, operating duty and inspection findings. Internal and external treatment stages may use different wear parts, handling arrangements and abrasive-delivery systems, so the maintenance plan should identify each stage separately.
Establish the Maintenance Baseline
Keep the equipment identification, configuration, approved settings and component information together. Record the abrasive working mixture, pipe range and typical incoming condition. These factors help explain changes in wear or surface results over time.
Use the manufacturer’s inspection intervals and limits as the starting point, then review findings against actual use. A generic table of component life in hours cannot account for different media, loading, settings and designs. Do not wait for a visible surface defect if an inspection limit already requires action.
Inspect Wear and Handling Components

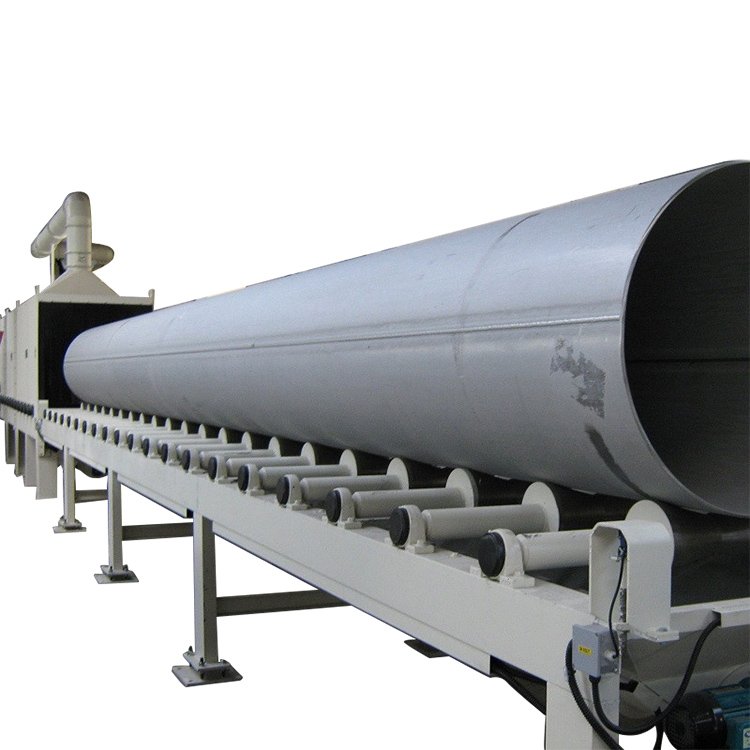

For external wheel blasting, inspect the wheel assembly, control cage, feed components, liners and seals as directed by the manual. Replacement and balancing procedures must match the assembly design. Do not interchange parts or attempt adjustments without the specified procedure.
For internal blasting, include the nozzle or lance, hoses, connections, positioning equipment and abrasive recovery path where fitted. Check the relationship between pipe movement and the treatment equipment, including the means of avoiding unintended contact.

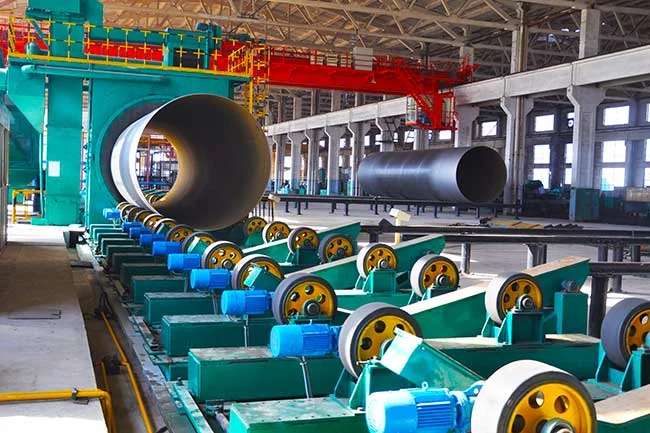

Inspect rollers, drives, supports and alignment across the permitted pipe range. Slipping or unstable motion can affect both coverage and safe handling. Keep lubrication instructions specific to the component, lubricant and operating condition.
Check Recovery and Extraction as Separate Systems
Trace abrasive recovery from the chamber to the separator and storage system. Look for blockages, leakage, abnormal carryout and changes in the working mixture. Sample where the procedure requires it rather than relying solely on the level in the hopper.
Review extraction indicators against the commissioned operating range. Filter cleaning and replacement should follow the collector instructions and observed condition. Visibility alone does not establish adequate contaminant control, and reducing airflow to save energy can compromise the system.
Use Changes in Behaviour as Investigation Triggers
| Observation | Areas to investigate under the maintenance procedure |
|---|---|
| Untreated bands or uneven finish | Pipe motion, blast pattern, abrasive flow and wear |
| Abnormal vibration or noise | Wheel components, bearings, drives and mounting condition |
| Increased abrasive carryout | Seals, recovery path, pipe handling and separation |
| Reduced extraction performance | Filters, ducting, fan operation and enclosure condition |
| Overheating or repeated faults | Loading, cooling, electrical condition and mechanical resistance |
These observations identify possible causes, not a diagnosis. Stop and isolate equipment where the operating instructions or risk assessment require it. Investigation should be performed by personnel competent for the task.
Maintain Safe Working Conditions
Before opening equipment or entering hazardous areas, follow the isolation procedure for electrical, pneumatic, mechanical and other stored energy. Verify the safe state before work. The OSHA control of hazardous energy standard provides a reference for the US workplace context.
Plan dust and abrasive handling during cleanup, filter changes and waste discharge. Restore guards and protective functions before restarting. Do not use production adjustments to compensate for a defect that requires maintenance.
Verify the Process After Intervention
Following relevant repairs or component replacement, check the setup and perform the required functional tests. Process representative pipes and inspect the agreed surface criteria before returning to routine production. Retain the settings, inspection result, parts replaced and cause of the intervention.
Review maintenance records for recurring faults and changes in consumption or accepted output. Use that evidence to adjust the maintenance plan; do not assume a fixed reduction in breakdowns or an automatic extension of machine life.
