An investment assessment for a rotary shot blasting machine should compare a defined proposed process with the actual existing route. Establish technical suitability first, then evaluate installed cost, operating requirements and supported financial assumptions. A rotary arrangement does not automatically produce a positive return.
Define the Machine and Workload

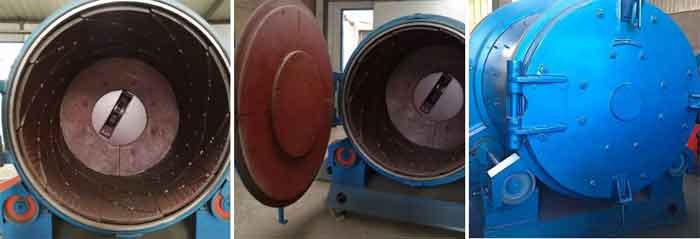

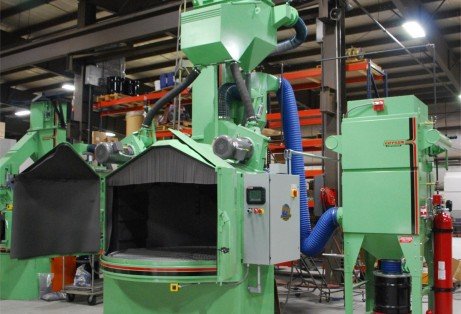

Clarify whether the proposal uses a rotary table, drum or another handling arrangement. These differ in part support, movement and contact. The abrasive acceleration system is a separate part of the configuration.
Provide part geometry, mass, material, incoming condition and required finish. Record the product mix, production schedule and accepted-output target. Include loading, masking, unloading, media removal and inspection in the process boundary.
Establish the Existing Cost Baseline
Use representative records for labor, utilities, consumables, maintenance and rework. Identify which costs are fixed, which vary with production and which can actually change if the proposed machine is installed.
Do not assume that an operator-task reduction becomes an equal cash saving or that extra nominal capacity becomes additional sales. State how staffing, demand and downstream constraints are treated in the model.
Include the Complete Investment
| Cost area | Items to consider |
|---|---|
| Equipment | Main machine, fixtures, handling, recovery and extraction |
| Delivery and installation | Packing, transport, foundations, lifting and utilities |
| Commissioning | Trials, inspection, training and issue resolution |
| Operation | Energy, abrasive, staffing, waste and quality checks |
| Maintenance | Wear parts, servicing, access and post-repair testing |
| Lifecycle changes | Planned upgrades, end-of-use costs and supportable residual value |
Obtain current quotations for a defined scope. Generic small, medium and large machine price ranges cannot establish the budget for a particular installation.
Forecast Performance from Trials
Use representative parts and agreed acceptance criteria to assess surface quality, handling and cycle requirements. Record the configuration, media, settings and inspection results. Include challenging parts and normal changeovers.
Cleaning alone does not establish coating adhesion or freedom from casting defects. Complete the relevant downstream tests before assigning a quality benefit. A trial result should not be extrapolated into a fixed annual throughput or maintenance improvement without a supported operating model.
Use Clear Calculation Definitions
For an illustrative planning framework, estimated net annual operating benefit is the supported reduction in existing costs plus any justified incremental contribution, less the added recurring costs of the proposed route. Avoid double counting the same production effect.
Simple payback equals installed investment divided by a positive estimated annual net operating benefit. This is a planning calculation, not a customer outcome. It does not account for all timing, financing, discounting or residual-value considerations.
If an ROI measure is used, define the time period, numerator and investment base explicitly. Different definitions produce different figures. Reaching simple payback does not mean subsequent operation is free of maintenance, consumable or other costs.
Test the Assumptions
Review lower utilization, changes in product mix, different wear rates and utility prices. Consider the cost of required inspection and any remaining manual work. Identify assumptions that have the greatest effect on the decision.
Keep forecasts separate from measured results. Do not use an unrelated customer story, a generic service-life claim or an unsupported staffing table as the basis for financial approval.
Prepare the Investment Review
Attach the technical acceptance plan, itemized proposal, baseline records and cost model. Record exclusions and unresolved assumptions, including support and spare-part arrangements. Assign responsibility for checking actual performance after commissioning.
The purchasing decision should be supported by an accepted process and transparent costs. Any later published financial or production result should be traceable to comparable operating evidence and the stated measurement boundary.
